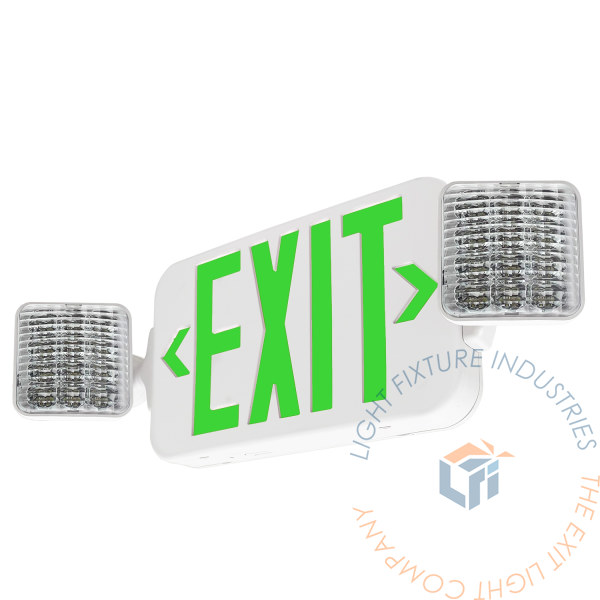

Combo | 2 Series Standard Green [COMBO2-G]
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL). This unit uses energy efficient and long lasting LED's. This unit contains a battery for backup power. The battery must be connected during installation. Previous Product Codes: COMBOG2 and COMBO-G2 Compatible Battery: Battery Backup Model: BAA-36 Compatible Remote Head(s): RHP-L-3V, RHB-L-3V, RHB-WPL-3V The COMBO2-G series is contructed from injection-molded, high-impact, engineering-grade, 5VA flame retardant thermoplastic. White housing is standard.. Emergency lamps use long-lasting, energy efficient ultra bright white LEDs. Heads are made with high-performance chromeplated reflectors and polycarbonate lenses for optimal light distribution. Exit portion uses red or green LEDs. Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates recharging a discharged battery within 24 hours. The COMBO2-G Combo Exit Light is designed with a maintenance-free 3.6V 100mAh NiCad battery that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours. Standard mounting height of 7.5ft multiple units illuminate 1 footcandle (FC) spaced at 18ft for a 3ft path of egress. At a mounting height of 7.5ft, multiple units illuminate 1 FC spaced at 14ft for a 6ft path of egress. Unit continuously monitors the AC power, battery supply voltage, emergency lamp condition and charging circuit. If failure is detected, the indicator will show status and correct when adjusted. Unit will automatically perform testing for five minutes every 28 days and 90 minutes every six months. 120/277 VAC operation. LED display indicates AC/ON. An external push button test switch allows maintenance personnel to quickly determine the operational status of the unit. Unit offers surge protected, solid state circuitry. The COMBO2-G is suitable for surface wall and top mounting via included canopy. Snap together design allows for quick and easy installation. Knock-out chevrons for customized egress signage. Mounting Configurations Explained View Installation Instructions
FEATURES
Remote Head Capable Model: BAA-3618
To use with with remote heads, please change the Operation Type above to Battery Backup + Remote Head Capable to ensure compatibility. Code at time of checkout must read: COMBO2-G-W-RH.SPECIFICATIONS
Dimensions
Width
20"
Height 8"
Depth
2"
Weight
8.00 lb
WHAT'S INCLUDED
CONSTRUCTION
ILLUMINATION
EMERGENCY OPERATION
BATTERY - BATTERY BACKUP
OPERATIONAL TEMPERATURE
Temperature Ratings Standard Option 68°F to 86°F PHOTOMETRICS
SELF-TESTING OPTION
ELECTRICAL COMPONENTS
INSTALLATION
DIMENSIONS
