This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).
This unit uses energy efficient and long lasting LED's.
This unit contains a battery for backup power. The battery must be connected during installation.
FEATURES
- UL 924, NEC and NFPA 101 Life Safety Code, OSHA, Local and State Codes
- Listed for damp location
- 120 or 277 VAC operation
- Injection-molded, VO flame retardant, high impact housing
- Charge rate/power "ON" LED indicator light
- 90 Minute battery backup time
SPECIFICATIONS
| Dimensions | |
|---|---|
| Height | 10.12" |
| Depth | 1" |
| Length | 14.12" |
| Weight | 5.00 lb |
WHAT'S INCLUDED
- Red LED Exit Sign Combo
- Installation Instructions & Hardware (Inside Unit)
- NiCad Battery - Must connect the battery after installation
CONSTRUCTION

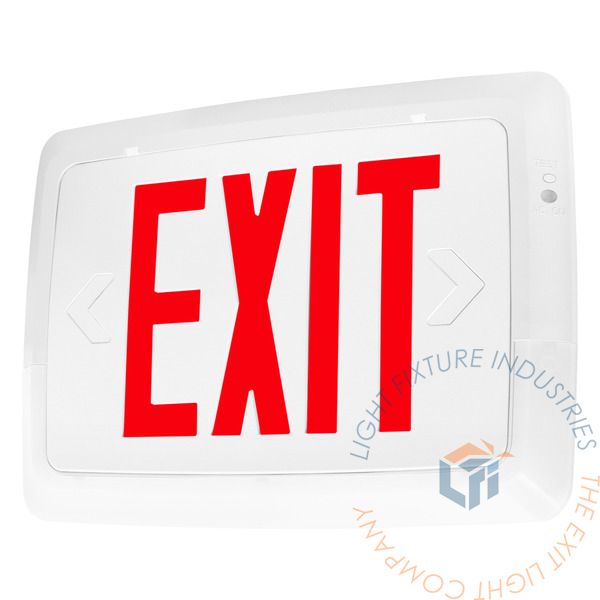

The COMBOLO Low Level Combo LED Exit Sign is constructed from injection molded, 5VA flame retardant, high impact thermoplastic housing. Easy snap-out chevron directional indicators (Arrows).
ILLUMINATION
The COMBOLO Low Level Combo LED Exit Sign illumination is achieved by using long-lasting, efficient ultra bright red or green LEDs for the EXIT portion and white LEDs for the emergency light portion. Color-matched diffuser eliminates hots spots and striations, providing optimal light output.
EMERGENCY OPERATION
Upon failure of the normal utility power, an internal solid-state transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.
BATTERY - BATTERY BACKUP

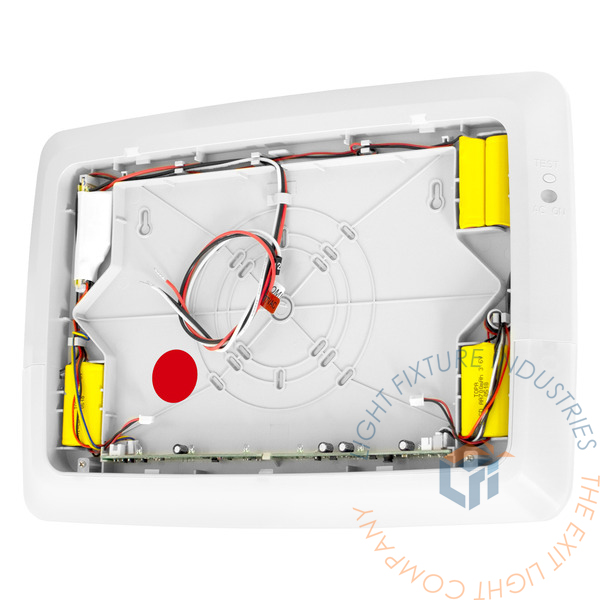

The COMBOLO Low Level Combo LED Exit Sign is designed with a maintenance-free 3.6V NiCad battery that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours.
OPERATIONAL TEMPERATURE
| Temperature Ratings | |
| Standard Option | 0°C to 50°C / 32°F to 122°F |
ELECTRICAL COMPONENTS

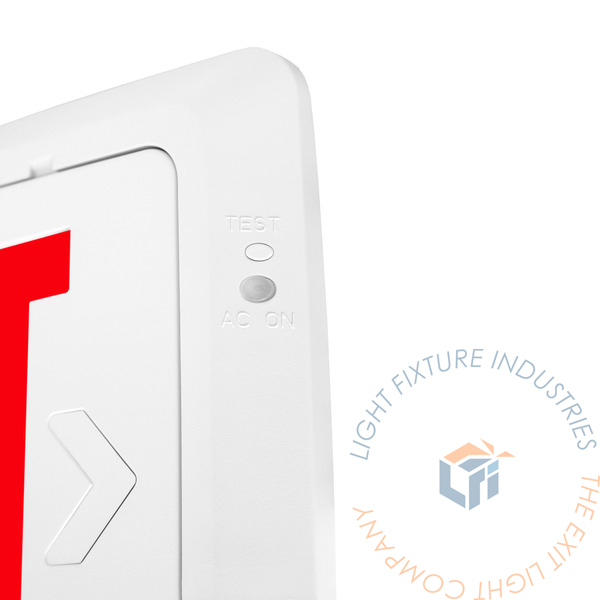

Dual voltage input 120/277 VAC operation. LED display indicates AC/ON. An external push button test switch with battery backup units allows maintenance personnel to quickly determine the operational status of the unit. Features unique bi-color LED indicator that alerts occupant on battery condition (Green-Normal Status Red-Check Battery). Unit offers surge protected, solid state circuitry.
INSTALLATION

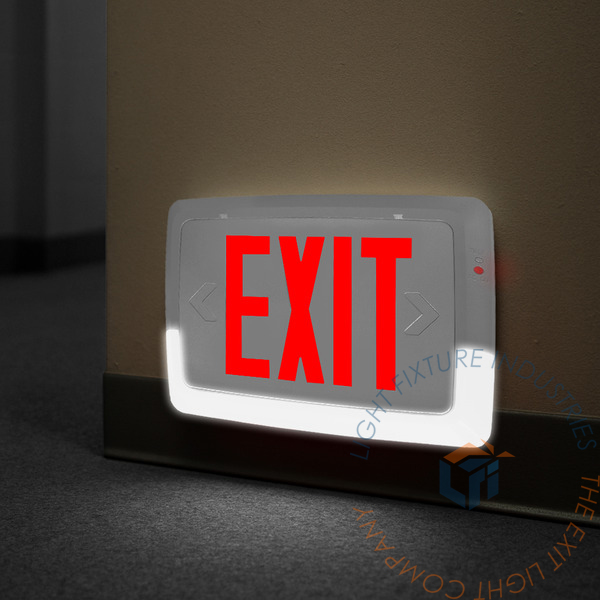

The COMBOLO Low Level Combo LED Exit Sign is suitable for surface wall installation. Knock-out chevrons for customized egress signage.
Mounting Configurations Explained
DIMENSIONS
