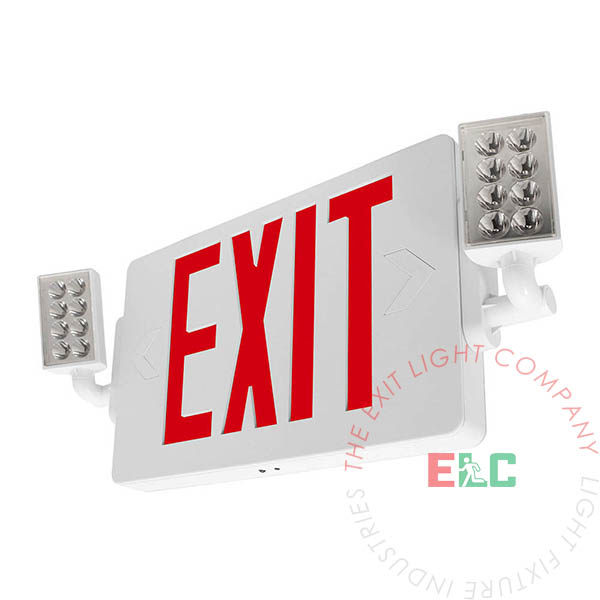

![Combo | Thin Red | White Housing [COMBOT-R]](/web/image/product.product/9919/image_1024/%5BCOMBOT-R-W-BB%5D%20Combo%20%7C%20Thin%20Red%20%7C%20White%20Housing%20%5BCOMBOT-R%5D?unique=642b968)
![Combo | Thin Red | White Housing [COMBOT-R]](/web/image/product.product/9919/image_128/%5BCOMBOT-R-W-BB%5D%20Combo%20%7C%20Thin%20Red%20%7C%20White%20Housing%20%5BCOMBOT-R%5D?unique=642b968)
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).
This unit uses energy efficient and long lasting LED's.
This unit contains a battery for backup power. The battery must be connected during installation.
FEATURES
- UL and cUL Listed
- Two 300° adjustable LED lamps
- Injection-molded, high-impact, UL94 V-0 thermoplastic construction
- 120-277 VAC operation
- Universal mounting pattern knock-out in back plate for J-box mounting
- Knock-out left/right arrows
- Test switch and charge indicator
- Innovative and easy installation in minutes
SPECIFICATIONS
| Dimensions | |
|---|---|
| Width | 16.92" |
| Height | 7.59" |
| Depth | 1.02" |
| Weight | 7.00 lb |
WHAT'S INCLUDED
- Thin RED LED Combo Exit Sign
- Two "EXIT" Faceplates (with optional knockout arrows)
- One Blank Faceplate
- Mounting Canopy, Installation Instructions & Hardware (Inside Unit)
- Battery (Inside Unit) - Must connect the battery after installation
CONSTRUCTION
The COMBOT series is constructed from injection-molded, high-impact, engineering-grade, UV-stabilized, UL 94 V-0 thermoplastic. White housing is standard.
ILLUMINATION
Emergency lamps use long-lasting, energy efficient ultra bright white LEDs. Heads are made with high-performance chrome-plated reflectors and polycarbonate lenses for optimal light distribution. Exit portion uses Red or Green LEDs.
EMERGENCY OPERATION
Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates recharging a discharged battery within 24 hours.
BATTERY - BATTERY BACKUP
The COMBOT Thin Combo Exit Sign series is designed with a maintenance-free 1.2V 1000mAh NiMH battery that provides an emergency duration of 90 minutes. Recharge time of the battery is 24 hours.
OPERATIONAL TEMPERATURE
| Temperature Ratings | |
| Standard Option | 0°C to 40°C / 32°F to 104°F |
PHOTOMETRICS
Total Luminaire Lumens : 85 per lamp
ELECTRICAL COMPONENTS
120-277 VAC operation. LED display indicates AC/ON. An external push button test switch allows maintenance personnel to quickly determine the operational status of the unit.
INSTALLATION
The COMBOT is suitable for surface wall and top mounting via included canopy. Snap together design allows for quick and easy installation. Knock-out chevrons for customized egress signage.
Mounting Configurations Explained
View Installation Instructions
DIMENSIONS
