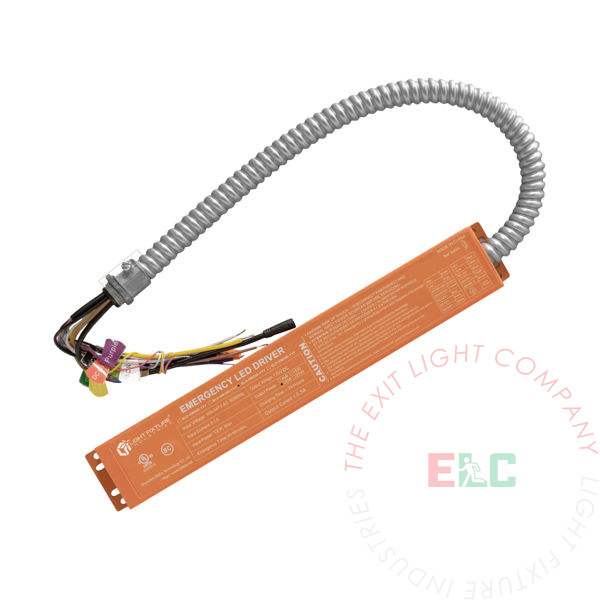

LED Driver is designed with an easy to follow wiring schematic
This unit uses energy efficient and long lasting LED's.
LED Driver is designed to support high voltage fixtures
FEATURES
- UL Listed for factory and field installation
- Meets NEC, IBC, and Life Safety Code Emergency Light Requirements
- High efficiency performance meets CA Title 20
- Ideal for many kinds of indoor LED lighting
- Simple Wiring
- Self-Testing (monthly/yearly)
- Push to test button and AC Light
- Single Flex
SPECIFICATIONS
| Dimensions | |
|---|---|
| Width | 1.97" |
| Height | .94" |
| Length | 12.91" |
What's Included
- LED Driver
- Installation Instructions
- Wire Nuts
- Push to Test Plate
CONSTRUCTION
The EB-LED emergency driver is constructed from durable steel.
EMERGENCY OPERATION
The EB-LED emergency driver provides a minimum of 90 minutes of battery backup time
BATTERY - BATTERY BACKUP
The EB-LED emergency driver is designed with a maintenance-free lithium battery that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours.
OPERATIONAL TEMPERATURE
| Temperature Ratings | |
| Standard Option | 41°F to 122°F |
SELF-TESTING OPTION
The EB-LED emergency driver will perform an initial self-diagnostic test for 3 seconds after the diver has been properly installed followed by a second test after 120 minutes to confirm the wiring and battery output. The driver will perform monthly self-test every 30 days for 3 seconds; this will test for wiring and battery output. *A blinking LED or completely off means failed test.
ELECTRICAL COMPONENTS
| Model No. | EB-LED-8W | EB-LED-20W |
| Output Power | 8W | 20W |
| Output Voltage | 170V DC | 170V DC |
| Input Voltage | 100-347V AC, 50/60HZ | 100-347V AC, 50/60HZ |
| Input Power | 6W Max | 12W Max |
| Input Current | ≤100Ma | ≤100Ma |
| Battery Type | Lithium | Lithium |
| Recharge Time | ≥24 Hours | ≥24 Hours |
| Emergency Time | ≥90 Minutes | ≥90 Minutes |
| Luminnare Power | 0-10V dimmable luminaire ≤60W Non-dimmable luminaire ≤8W | 0-10V dimmable luminaire ≤100W Non-dimmable luminaire ≤25W |
INSTALLATION
The EB-LED emergency driver can be installed in different types of indoor troffers, strip fixures, can lights, and LED ceiling panels. We recommend confirming electrical specs to make sure the LED Driver is fully compatible.
Mounting Configurations Explained
