This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).
This unit uses energy efficient and long lasting LED's.
This unit contains a battery for backup power. The battery must be connected during installation.
FEATURES
- UL 924, NEC, OSHA and NFPA 101 Life Safety Code
- UL Listed for Damp Locations
- Universal 120/277 VAC (60Hz) input
- Includes two adjustable LED lamps - 349 lumens per lamp
- Remote Capacity of 10W on remote head capable models
- Automatic low voltage disconnect (LVD)
- Push-to-test switch
- Charge rate / power-on indicator light
Compatible Battery:
Battery Backup Model: B6V4A Battery
Remote Head Capable Model: B6V12 Battery
Compatible Remote Head(s):
RHB-L (Multi-Volt Option)
RHB-WPL (Multi-Volt Option)
SPECIFICATIONS
| Dimensions | |
|---|---|
| Height | 8.88" - 9" |
| Depth | 2" - 2.5" |
| Length | 12" - 12.31" |
| Weight | 10.00 lb |
WHAT'S INCLUDED
- Steel Housing LED Emergency Light
- Installation Instructions & Hardware
- 1 SLA Battery (Located Inside unit)
CONSTRUCTION

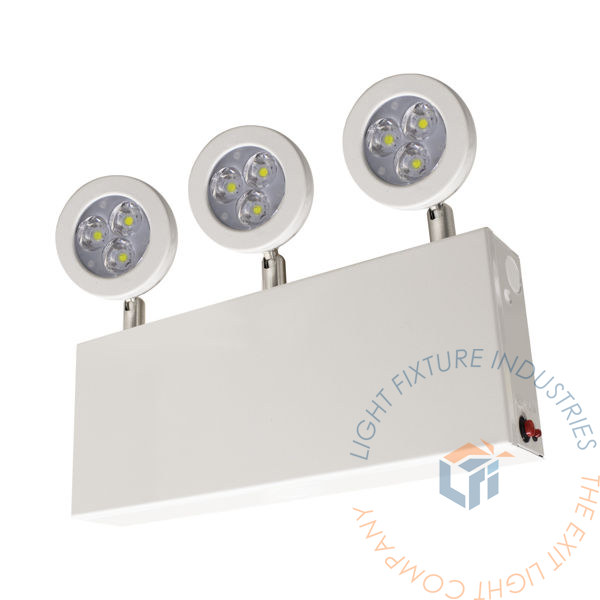

The EL-CHLED series steel housing emergency light is constructed from 20-gauge steel with a white or black finish. Head lamps are also constructed from steel (glass lens).
ILLUMINATION
The EL-CHLED series steel housing emergency light comes with 2 fully adjustable LED heads lamps that provide 349 lumens per lamp (698 total lumens). The unit is equipped with (2) 6V 5.3W LED lamps heads.
EMERGENCY OPERATION
Upon failure of the normal utility power, an internal solid-state transfer switch automatically provides uninterrupted emergency operation for at least 120 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.
BATTERY - BATTERY BACKUP
The EL-CHLED series steel housing emergency light is equipped with a maintenance-free 6V rechargeable sealed lead acid battery.
OPERATIONAL TEMPERATURE
| Temperature Ratings | |
| Series | Temperature |
| Battery Backup | 68°F to 122°F |
PHOTOMETRICs
Total Luminaire Lumens :
White Housing:
Total Lumen: 1200
Black Housing:
Total Lumen: 670
White Housing:
Suggested mounting height of 10ft illuminates 1 footcandle (FC) spaced at 105ft for a 3ft path of egress.
Mounting height of 10ft illuminates 1 footcandle (FC) spaced at 100ft for a 6ft path of egress.
Black Housing:
Suggested mounting height of 7.5ft illuminates 1 footcandle (FC) spaced at 62ft for a 3ft path of egress.
Mounting height of 10ft illuminates 1 footcandle (FC) spaced at 50ft for a 3ft path of egress.
Disclosure:
Spacing is measured in lab condition with an assumed open space, no obstruction and reflection rates of 80 (ceiling) / 50 (walls) / 20 (floor). Actual spacing may vary depending on what environment the fixture is installed in.g is measured in lab condition with an assumed open space, no obstruction and reflection rates of 80 (ceiling) / 50 (walls) / 20 (floor). Actual spacing may vary depending on what environment the fixture is installed in.
REMOTE HEAD CAPABLE OPTION
The total capacity is 10W. This allows the EL-CHLED unit to supply power to additional 6V remote heads. These remote heads would then operate on the same emergency mode as the standard units (see Emergency Operation Section).
ELECTRICAL COMPONENTS
Dual voltage input 120/277 VAC operation. LED display indicates AC/ON. An external push button test switch allows maintenance personnel to quickly determine the operational status of the unit. Unit offers surge protected, solid state circuitry.
INSTALLATION
The EL-CHLED series steel housing emergency light is suitable for wall installation. Includes universal knockout pattern on back plate. Side and top knockouts for conduit feed applications.
Mounting Configurations Explained
DIMENSIONS
