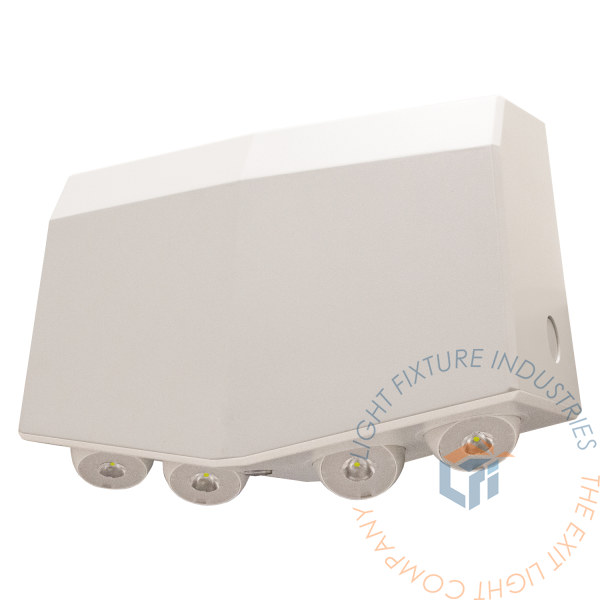

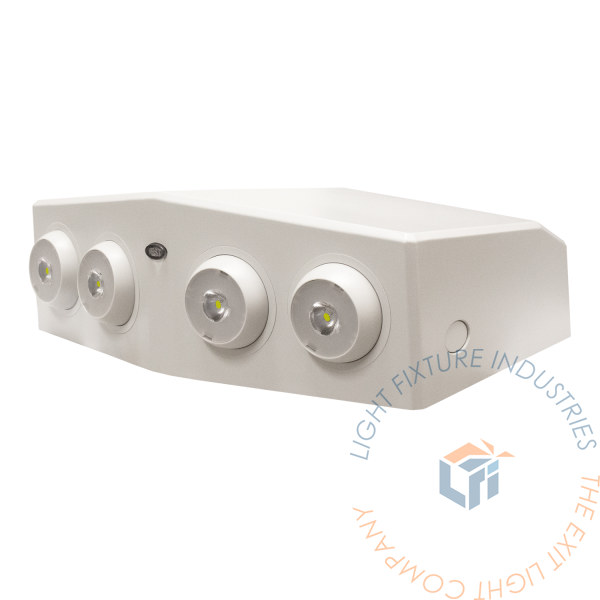

Emergency Light | Decorative LED [EL-DECO]

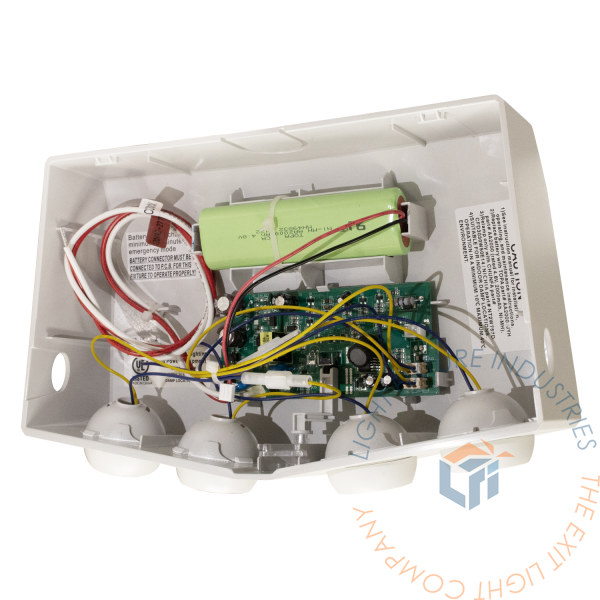

This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL). This unit uses energy efficient and long lasting LED's. This unit contains a battery for backup power. The battery must be connected during installation. The EL-DECO series is constructed from injection-molded, engineer-grade, 5VA flame retardant thermoplastic. White housing is standard, also available in black housing. The EL-DECO emergency lamps use long-lasting, efficient ultra bright white LEDs. Fully adjustable 1.0W LED lamp heads Features unique all inclusive lamp, reflector, and lens assembly. Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours. The EL-DECO Emergency Lights series is designed with a maintenance-free 4.8V 2000mAh Ni-MH battery that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours. Operational temperature range is 50°F to 122°F. Total Luminaire Lumens : 416lm Standard mounting height of 10ft illuminates 1 footcandle (FC) spaced at 38ft for a 3ft path of egress. Standard mounting height of 12ft illuminates 1 footcandle (FC) spaced at 50ft for a 3ft path of egress. Standard mounting height of 15ft illuminates 1 footcandle (FC) spaced at 42ft for a 3ft path of egress. Continuously monitors the AC power, battery supply voltage, emergency lamp and charging circuit. The multi-color LED indicator light will indicate failure and adjust when it has been corrected. Unit will automatically perform NFPA required monthly and annual testing. Refer to user manual for details. Universal voltage input 120-277 VAC operation. LED display indicates AC/ON. An external push button test switch allows maintenance personnel to quickly determine the operational status of the unit. The EL-DECO is suitable for wall mount application. Universal knockout pattern on back plate for surface mount and conduit applications.
FEATURES
SPECIFICATIONS
Dimensions
Width
9.69"
Height
6.19"
Depth
3.13" Weight 6.00 lb WHAT'S INCLUDED?
CONSTRUCTION
ILLUMINATION
EMERGENCY OPERATION
BATTERY - BATTERY BACKUP
PHOTOMETRICS
SELF-TESTING OPTION
ELECTRICAL COMPONENTS
INSTALLATION
DIMENSIONS
