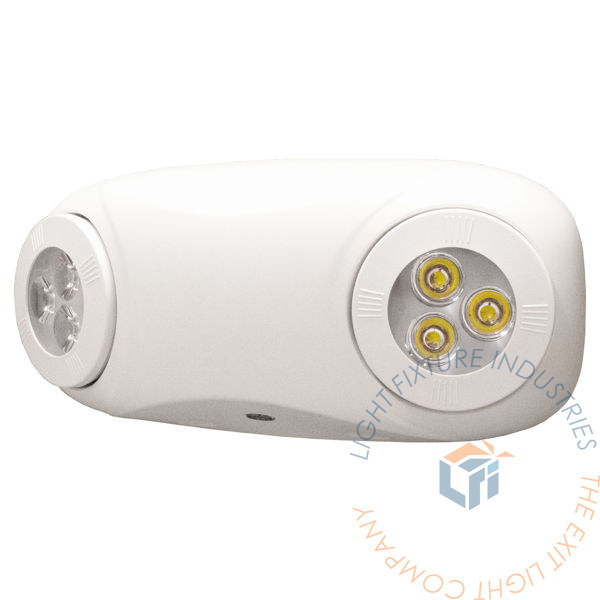

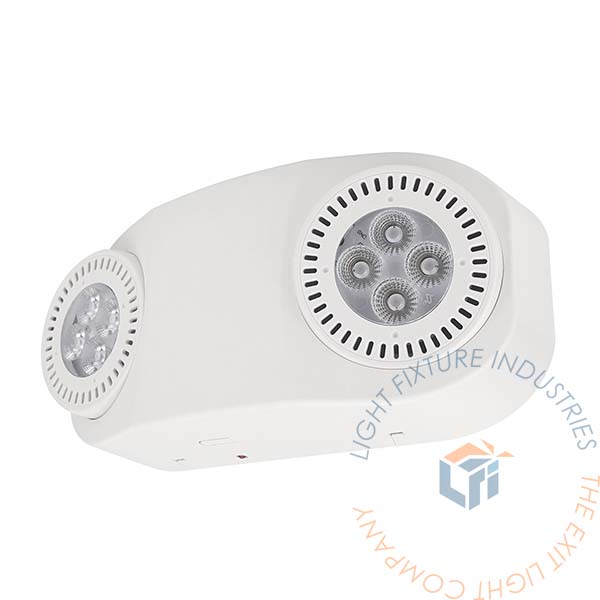

Emergency Light | High Output Thin Line [EL-THO]
Emergency Light | High Output Thin Line [EL-THO]
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL). This unit uses energy efficient and long lasting LED's. This unit contains a battery for backup power. The battery must be connected during installation. The EL-THO Thin Series Emergency Light is constructed from injection-molded, engineer-grade, 5VA flame retardant thermoplastic. White housing is standard. The EL-THO Thin Series Emergency Light uses long-lasting, efficient ultra bright white LEDs. Fully adjustable LED lamp heads equipped with 4 white LEDs each. Lamp heads are on track-and-swivel arrangement allowing lamp heads to be fully adjustable. Upon failure of the normal utility power, an internal solid-state transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. If remote head capability is used without connecting additional remote heads, the battery can provide a run-time of 180 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours. The EL-THO Thin Series Emergency Light is designed with a maintenance-free 6.4 4000mAh LiFePO4 battery that provides a minimum emergency duration of 90 minutes. LiFePO4 batteries are known for their longevity, safety, and efficiency. With LiFePO4 batteries, safety is paramount – their formulation, lithium iron phosphate, is highly resistant to overheating and fire hazards. They are backed by an integrated battery management system (BMS) to prevent overcharge, over-discharge, and short-circuiting, ensuring peace of mind for users. Recharge time of the battery is 24 hours. Total Luminaire Lumens : 1100 Suggested mounting height of 7.5ft illuminates 1 footcandle (FC) spaced at 130ft for a 3ft path of egress. Mounting height of 7.5ft illuminates 1 footcandle (FC) spaced at 112ft for a 6ft path of egress. Disclosure: Spacing is measured in lab condition with an assumed open space, no obstruction and reflection rates of 80 (ceiling) / 50 (walls) / 20 (floor). Actual spacing may vary depending on what environment the fixture is installed in. The remote head capability option allows the EL-THO unit to supply power to up to two additional (up to 12.8W) 3.6V LED remote heads. The remote heads would then operate on the same emergency mode as the standard units (see Emergency Operation Section). Universal voltage input 120-277VAC 50/60Hz operation. LED display indicates AC/ON. An external push button test switch allows maintenance personnel to quickly determine the operational status of the unit. Unit offers surge protected, solid state circuitry. The EL-THO Thin Series Emergency Light is suitable for wall or ceiling mount. Snap together design allows for quick and easy installation. Conduit mount knockout on back plate only.
FEATURES
SPECIFICATIONS
Dimensions (May Vary by Model)
Width
4.88"
Height
3.36"
Length 10.63"
Weight
4.00 lb
WHAT'S INCLUDED?
CONSTRUCTION
ILLUMINATION
EMERGENCY OPERATION
BATTERY - BATTERY BACKUP
OPERATIONAL TEMPERATURE
Temperature Ratings Standard Option 50°F to 104°F PHOTOMETRICS
REMOTE HEAD CAPABLE OPTION
ELECTRICAL COMPONENTS
INSTALLATION
DIMENSIONS
