This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).
This unit uses energy efficient and long lasting LED's.
This unit contains a battery for backup power. The battery must be connected during installation.
FEATURES
- UL 924 listed for wet locations
- CSA Listed
- Universal input 100-300V
- Quick disconnect mounting plate
- Injection-molded, VO flame retardant, high impact housing
- Fully gasketed for outdoor use
Compatible Battery: 3.6V 1800mah NiCad
SPECIFICATIONS
| Dimensions | |
|---|---|
| Weight | 6.00 lb |
WHAT'S INCLUDED
- Flood Light
- Mounting Gasket
- Installation Instructions & Hardware (Inside Unit)
- NiCad Battery - Must connect the battery after installation
CONSTRUCTION
The ELF-FL flood emergency light is constructed with a white thermoplastic housing.
ILLUMINATION
The ELF-FL flood emergency light series illumination is achieved by (12) twelve bright LEDs on each lamp (24 LEDs total) for a total of 246lm. The light is designed with a PIR (Passive Infrared Sensor) with 4 different features: low-light detection, 130° angle detection, 30ft detection range, and automatically turns off after 15 mins of no motion.
EMERGENCY OPERATION
Upon failure of the normal utility power, an internal solid-state transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.
BATTERY - BATTERY BACKUP
The ELF-FL flood emergency light is designed with a maintenance-free 3.6V 1800mAh NiCad battery that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours.
OPERATIONAL TEMPERATURE
| Temperature Ratings | |
| Standard Option | 50°F to 104°F |
ELECTRICAL COMPONENTS

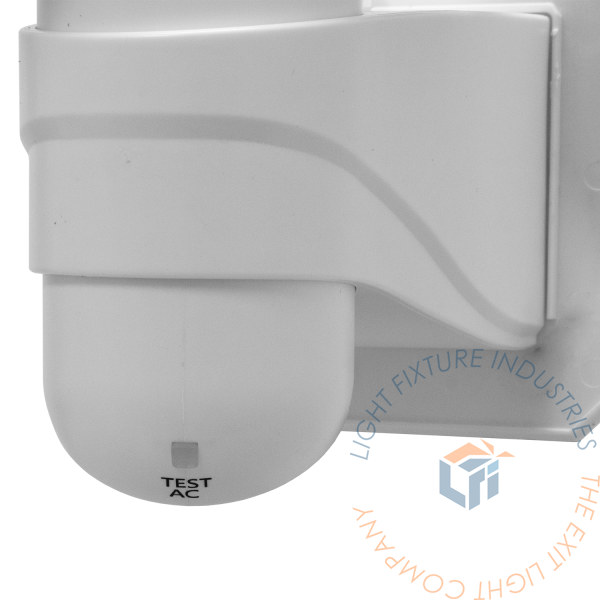

Universal voltage input 100-300V operation. LED display indicates AC/ON. An external push button test switch with battery backup units allows maintenance personnel to quickly determine the operational status of the unit.
INSTALLATION

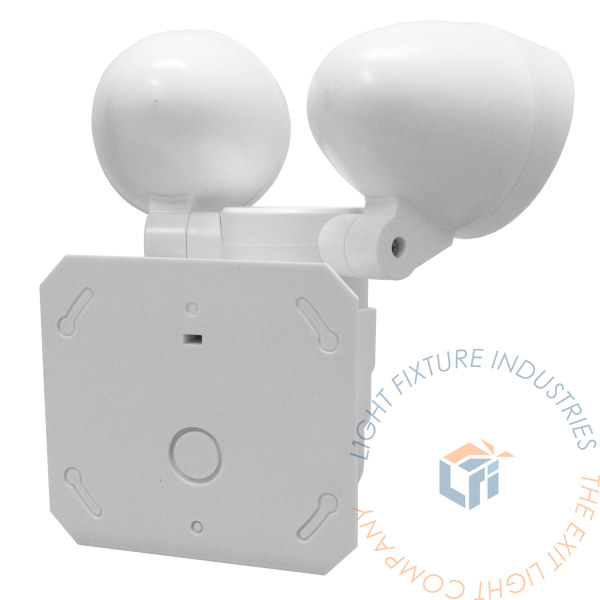

The ELF-FL flood emergency light is suitable for wall mount installations.
