This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).
This unit uses energy efficient and long lasting LED's.
This unit contains a battery for backup power. The battery must be connected during installation.
FEATURES
- UL 924, NEC, OSHA and NFPA 101 Life SafetyCode
- Listed for damp location
- Most versatile edge lit exit sign on the market
- Recessed Mounting Only
- Aluminum housing with high grade acrylic face
- Field Installable Arrows for Left, Right or Both directions.
- Long life LED illumination
- Test switch and charge rate indicator on battery backup models
- Dual 120/277 volt operation
- NON CEC Compliant
Previous Product Codes: NYCELRTR-R
Available in Surface Mount (ELRT-G)
Compatible Battery: B3A-48
SPECIFICATIONS
| Dimensions | |
|---|---|
| Width | 15.75" |
| Height | 8.13" |
| Depth | 5.5" |
| Weight | 10.00 lb |
WHAT'S INCLUDED
- Green LED Exit Sign
- Recessed Mounting Kit
- Clear Single Sided "EXIT" Faceplate (with optional adhesive arrows)
- Mirrored Double Sided "EXIT" faceplate (extra cost)
- Mounting Canopy, Installation Instructions & Hardware
- NiCad Battery - Must connect the battery after installation
CONSTRUCTION

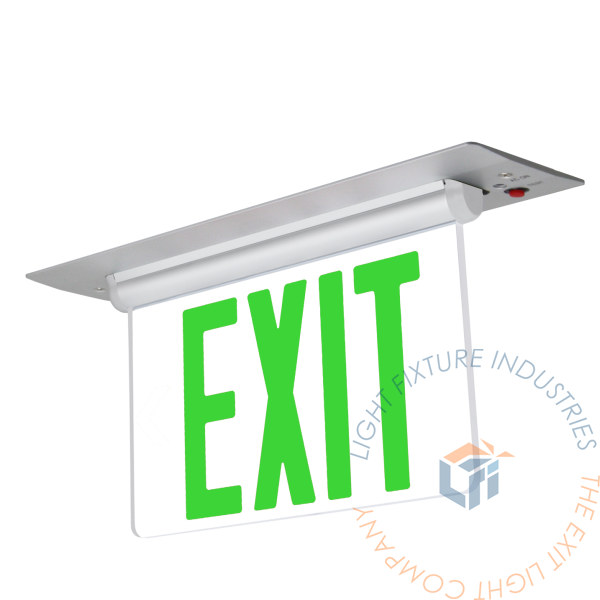

The ELRT-G-RM Edge Lit Exit Sign housing is contructed of die-cast aluminumhousing with an etched, clear acrylic panel. Double sided panel comes as mirrored configuration. Lettering is 6” high with 3/4” stroke. Aluminum housing is standard, black and white housing available.
ILLUMINATION
The ELRT-G-RM Exit Sign series provides a long life LED illumination. The unit is constructed with a red or green high output LED board. Energy consumption is rated at less than 3 watts for the AC only model units. Battery backup units energy consumption is rated at less than 5 watts.
EMERGENCY OPERATION
Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.
BATTERY - BATTERY BACKUP
The ELRT-G-RM series is designed with a 4.8 Volt maintenance-free NiCad battery. The battery is protected by a low voltage cut-off circuit. The operating temperature range for the battery is 32°F (0°C) to 104°F (40°C).
OPERATIONAL TEMPERATURE
| Temperature Ratings | |
| Standard Option | 32°F to 104°F |
SELF-TESTING OPTION
This unit continuously self checks for proper operation. The multi-color LED indicator light will indicate the status after testing and adjust when corrected. The unit will self test in emergency mode for up to the full 90 minute duration to ensure proper operation during an actual power failure.
ELECTRICAL COMPONENTS
Dual voltage input 120/277 VAC operation. LED display indicates AC/ON. An external push button test switch allows maintenance personnel to quickly determine the operational status of the unit. Unit offers brown out, overload and short circuit protection.
INSTALLATION
The ELRT-G-RM Sign is suitable for Recessed mounting through the included Recessed Mounting Kit, which allows this unit to be ceiling recessed for drop ceiling, new construction, and wall application only. Includes field installable directional arrow indicators. All hardware is included.
Mounting Configurations Explained
View Installation Instructions
DIMENSIONS
