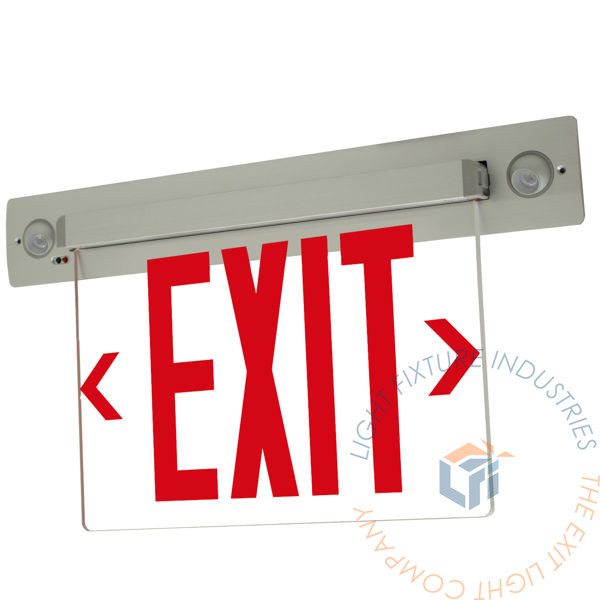

Combo | NYC Approved Aluminum | Edge Lit [NYCOMBOELR]
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL). This unit uses energy efficient and long lasting LED's. This unit contains a battery for backup power. The battery must be connected during installation. The NYCOMBOLED New York City Steel Combo is constructed from powder-coated 20-gauge steel with injection-molded thermoplastic heads. White housing is standard. The NYCOMBOLED uses two LED lamps. High-performance smooth metal reflector and glass lens for optimal light distribution. Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours. The NYCOMBOLED series is designed with a maintenance-free NiCad battery that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours. Total Luminaire Lumens : 195.3 Per Lamp Dual voltage input 120/277 VAC operation. LED display indicates AC/ON. An external push button test switch allows maintenance personnel to quickly determine the operational status of the unit. Unit offers surge protected, solid state circuitry. The NYCOMBOLED is suitable for wall installation, back faceplate has knockouts for universal mounting configuration.
FEATURES
SPECIFICATIONS
Dimensions
Width
14.58"
Height
16.78"
Depth
2.5"
Weight
10.00 lb
CONSTRUCTION
ILLUMINATION
EMERGENCY OPERATION
BATTERY - BATTERY BACKUP
PHOTOMETRICS
ELECTRICAL COMPONENTS
INSTALLATION
Operation Type: Battery Backup |
