This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).
This unit uses energy efficient and long lasting LED's.
This unit contains a battery for backup power. The battery must be connected during installation.
FEATURES

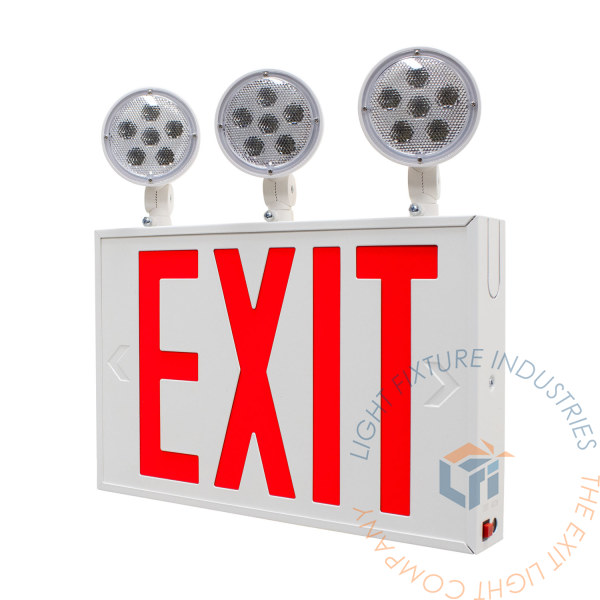

- NYC Emergency light combo with battery backup
- Rugged 20 gauge steel housing
- Approved for New York City Code requirements
- Universal 120/277 VAC input
- Includes three adjustable LED lamp heads
- Third head is optional and installed by field-technician
- Brown-out protection
- Automatic low voltage disconnect (LVD)
- Push-to-test switch
- Maintenance-free battery
- Charge rate / power-on indicator light
SPECIFICATIONS
| Dimensions | |
|---|---|
| Width | 14.58" |
| Height |
16.78"
|
| Depth |
2.5"
|
| Weight | 10.00 lb |
CONSTRUCTION
The NYCOMBOLED New York City Steel Combo is constructed from powder-coated 20-gauge steel with injection-molded thermoplastic heads. White housing is standard.
ILLUMINATION
The NYCOMBOLED uses two LED lamps. High-performance smooth metal reflector and glass lens for optimal light distribution.
EMERGENCY OPERATION
Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.
BATTERY - BATTERY BACKUP
The NYCOMBOLED series is designed with a maintenance-free NiCad battery that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours.
PHOTOMETRICS
Total Luminaire Lumens : 195.3 Per Lamp
ELECTRICAL COMPONENTS
Dual voltage input 120/277 VAC operation. LED display indicates AC/ON. An external push button test switch allows maintenance personnel to quickly determine the operational status of the unit. Unit offers surge protected, solid state circuitry.
INSTALLATION
The NYCOMBOLED is suitable for wall installation, back faceplate has knockouts for universal mounting configuration.
