Combo | Wet Location Rated NEMA 4X Green [WLCO4X-G]

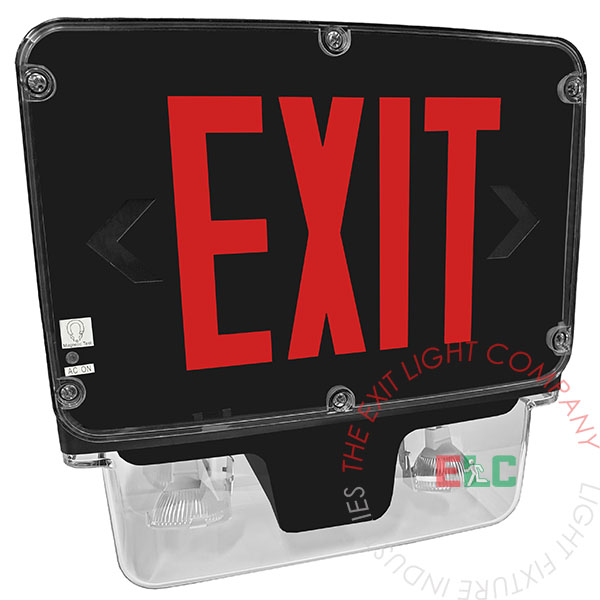

The WLCO4X Combo Exit Sign series is constructed of reinforced polycarbonate in white or black housing. Corrosion-resistant enclosure with one piece, high impact resistant, UV stabilized polycarbonate lens and molded gasket with stainless steel screws. Tamper-proof hardware is available for unauthorized access to the unit. The WLCO4X Combo Exit Sign series offers two fully adjustable, ultra bright 3.3W high performance MR-16 base LED lamp heads for optimized center to center spacing. Long-life, energency efficient Red or Green LED EXIT sign illumination. Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates recharging a discharged battery within 24 hours. The WLCO4X Combo Exit Sign series is designed with a maintenance-free 6V/12V NiCad (12W and 15W Models) or 6V/12V maintenance-free sealed lead acid battery (28W Models) that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours. Unit will automatically perform NFPA required monthly and annual testing when Self-Testing + Battery Backup Operation is selected. Refer to user manual for details. The remote head capability option allows the WLCO4X unit to supply power to additional 6V/12V remote heads. The remote heads would then operate on the same emergency mode as the standard units (see Emergency Operation Section). 120/277 VAC operation. LED display indicates AC/ON. Unit offers surge protected, solid state circuitry. Battery backup models offer an external push button test switch, brownout detection, AC lockout, low voltage disconnect and visual LED system fault indicator. The WLCO4X Combo Exit Sign series is suitable for wall, ceiling and side mount (Polycarbonate mounting bracket included). Knockouts provided for conduit feed applications. Mounting Configurations ExplainedFEATURES
SPECIFICATIONS
Dimensions
Height
14.18"
Depth
4"
Length
13.12"
Weight
15.00 lb
WHAT'S INCLUDED
CONSTRUCTION
ILLUMINATION
EMERGENCY OPERATION
BATTERY - BATTERY BACKUP
OPERATIONAL TEMPERATURE
Temperature Ratings Series Temperature 12W and 15W Series 0°C to 50°C / 32°F to 122°F 28W Series 10°C to 40°C / 50°F to 104°F Expanded Temperature Rating -20C° to 50°C / -4°F to 122°F SELF-TESTING OPTION
REMOTE HEAD CAPABLE OPTION
ELECTRICAL COMPONENTS
INSTALLATION
DIMENSIONS
