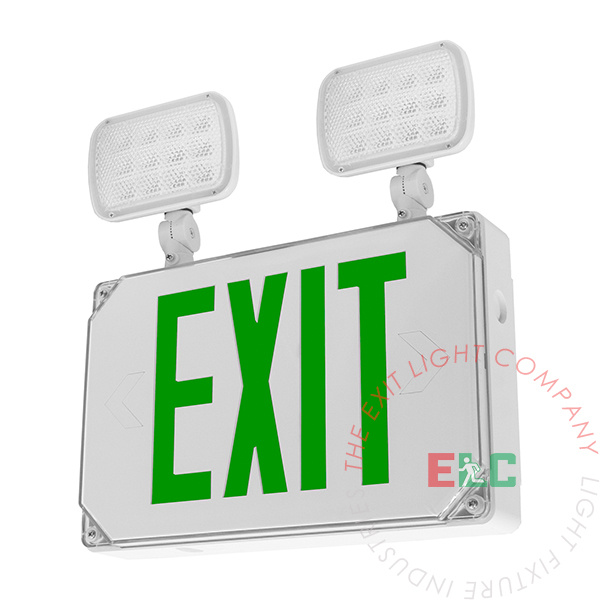

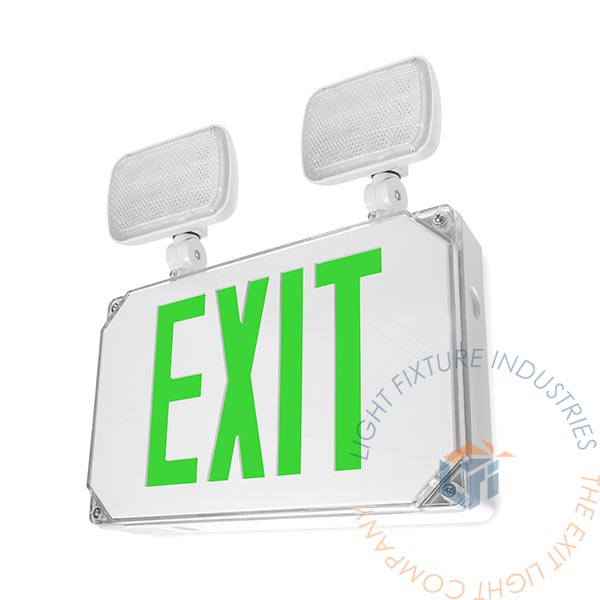

Combo | F Series Wet Location Rated Green | White Housing | Battery Backup [WLFCOMBO-G]
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL). This unit uses energy efficient and long lasting LED's. This unit contains a battery for backup power. The battery must be connected during installation. The WLFCOMBO series is constructed of injection-molded thermoplastic ABS housing. UL 94V-0 Flamre Rated. Fully gasketed with engineering grade silicone. The WLFCOMBO series uses ultra bright, energy efficient red or green LEDs. Features 2 fully adjustable square LED lamp heads. Total lumen output is 228.6 lm. Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours. The WLFCOMBO Weatherproof Combo Exit Sign series is designed with a maintenance-free Ni-Mh battery that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours. Dual voltage input 120/277 VAC operation. LED display indicates AC/ON. An external push button test switch allows maintenance personnel to quickly determine the operational status of the unit. The WLFCOMBO combination unit is suitable for surface wall and end mounting. Suitable for indoor and wet location installations. Mounting Configurations Explained
FEATURES
Compatible Battery: 3.6V 1200mAh Ni-Mh
SPECIFICATIONS
Dimensions
Height
13.3"
Depth
2.25"
Length
12.5"
Weight
10.00 lb
WHAT'S INCLUDED
CONSTRUCTION
ILLUMINATION
EMERGENCY OPERATION
BATTERY - BATTERY BACKUP
OPERATIONAL TEMPERATURE
Temperature Ratings Series Temperature Battery Backup 0°C to 40°C / 32°F to 104°F ELECTRICAL COMPONENTS
INSTALLATION
DIMENSIONS
