Emergency Light | NEMA Rated 4X [EL-4X]

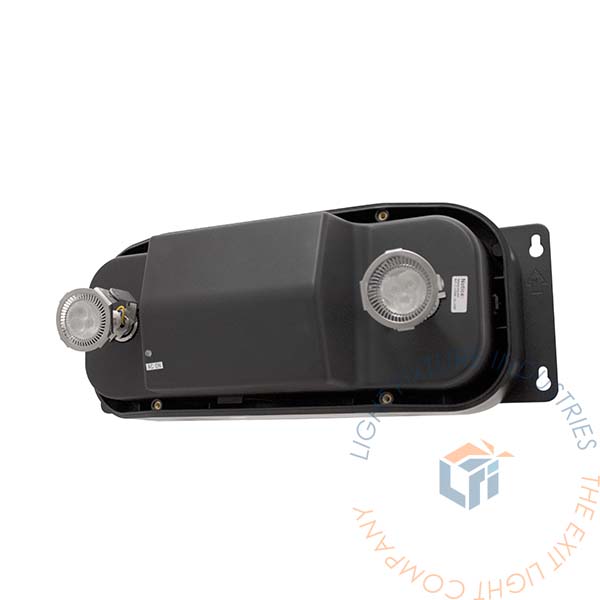

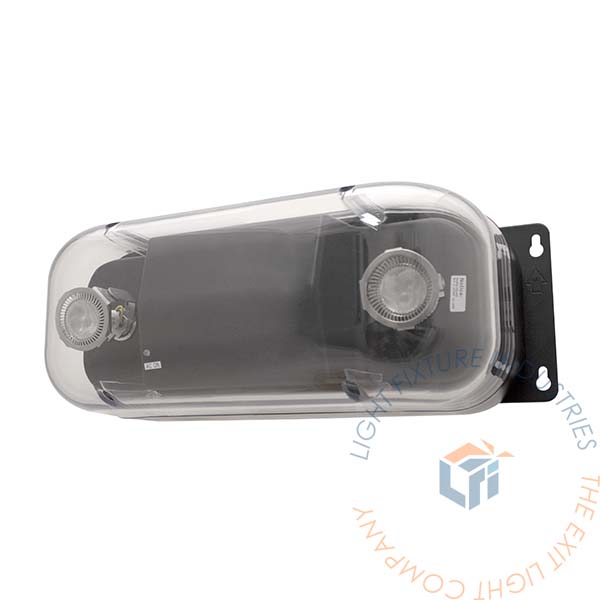

This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL). This unit uses energy efficient and long lasting LED's. This unit contains a battery for backup power. The battery must be connected during installation. The EL4X Emergency Light series is constructed of reinforced polycarbonate in white or black housing. Corrosion-resistant enclosure with one piece, high impact resistant, UV stabilized polycarbonate lens and molded gasket with stainless steel screws. Tamper-proof hardware is available for unauthorized access to the unit. The EL4X Emergency Light series offers two fully adjustable, ultra bright 3.3W high performance MR-16 base LED lamp heads for optimized center to center spacing. Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates recharging a discharged battery within 24 hours (36 hours on the 54W Models). The EL4X Emergency Light series is designed with a maintenance-free 6V/12V NiCad (15W Models) or 6V/12V maintenance-free sealed lead acid battery (36W and 54W Models) that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours. Unit will automatically perform NFPA required monthly and annual testing when Self-Testing + Battery Backup Operation is slected. Refer to user manual for details. 120/277 VAC operation. Unique bi-color LED indicator light alerts occupant on battery condition (Green-normal, Red-check-battery). Unit offers surge protected, solid state circuitry. Battery backup models offer an external push button test switch, brownout detection, AC lockout, low voltage disconnect and visual LED system fault indicator. The EL4X Emergency Light series is suitable for wall mount. Universal knockout pattern on back provided with gasket for watertight seal for back mount. Mounting Configurations Explained
FEATURES
SPECIFICATIONS
Dimensions
Height
6.25"
Depth
6.5"
Length
14.87"
Weight
15.00 lb
WHAT'S INCLUDED
CONSTRUCTION
ILLUMINATION
EMERGENCY OPERATION

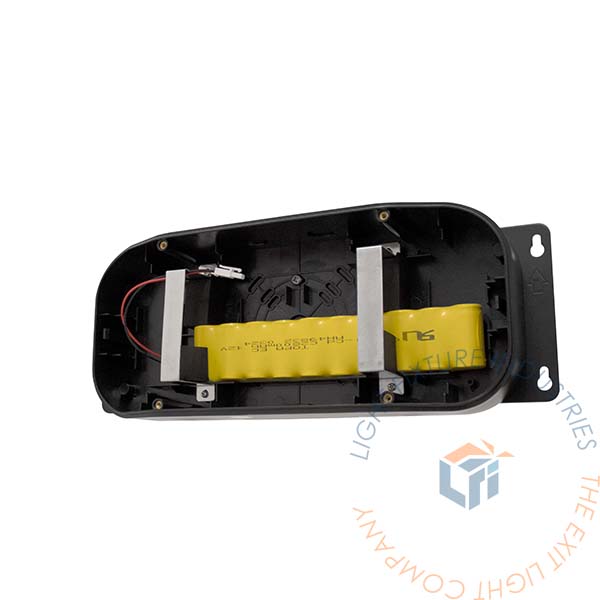

BATTERY - BATTERY BACKUP
OPERATIONAL TEMPERATURE
Temperature Ratings Series Temperature 15W Series 0°C to 50°C / 32°F to 122°F 36W and 54W Series 10°C to 40°C / 50°F to 104°F Expanded Temperature Rating -25C° to 50°C / -13°F to 122°F PHOTOMETRICS

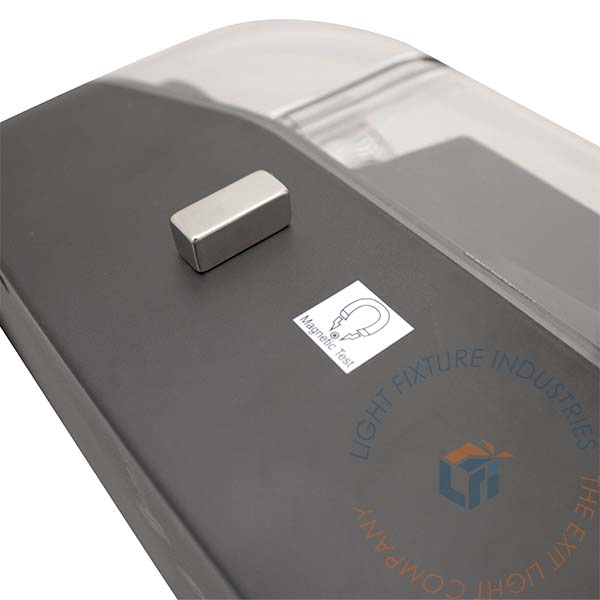

SELF-TESTING OPTION

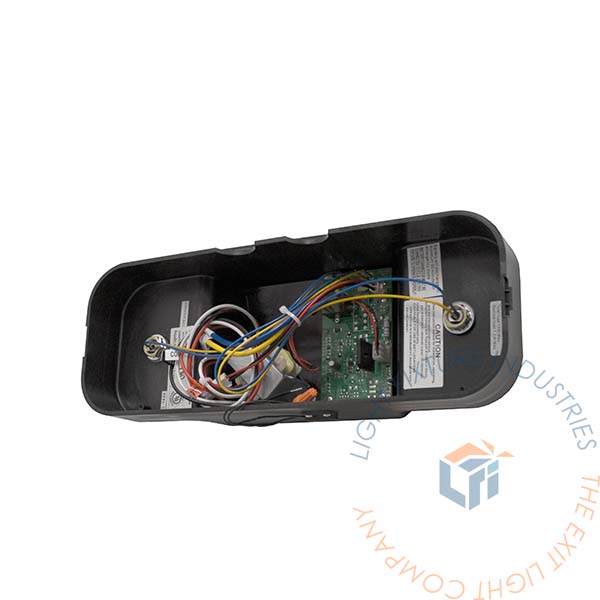

ELECTRICAL COMPONENTS
INSTALLATION
DIMENSIONS
