This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).
This unit uses energy efficient and long lasting LED's.
This unit contains a battery for backup power. The battery must be connected during installation.
FEATURES
- UL 924, NEC, OSHA and NFPA 101 Life Safety Code
- Listed for damp location
- Recessed Mounting Only
- Aluminum housing with high grade acrylic face
- Field Installable Arrows for Left, Right or Both directions.
- Long life LED illumination
- Test switch and charge rate indicator on battery backup models
- Dual 120/277 volt operation
SPECIFICATIONS
| Dimensions | |
|---|---|
| Width | 5.44" |
| Height | 10.56" |
| Length | 14.56" |
| Weight | 10.00 lb |
WHAT'S INCLUDED
- RED LED Exit Sign
- "EXIT" Faceplate (with optional adhesive arrows)
- Installation Instructions & Hardware
- NiCad Battery - Must connect the battery after installation
CONSTRUCTION

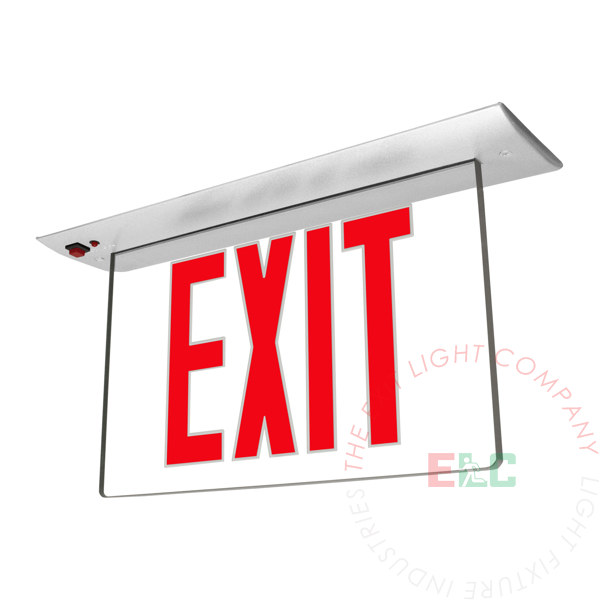

The ELR Edge Lit Exit Sign series housing is constructed from premium-grade, extruded aluminum. Easily access the battery and internals with detachable trim piece. Standard housing color is aluminum with other choices available.
ILLUMINATION
The ELR Edge Lit Exit Sign series has ultra bright, energy efficient, and lost lasting LEDs. The UV stabilized ultra clear acrylic edge-lit panel provides consistent and uniform illumination.
EMERGENCY OPERATION
Upon failure of the normal utility power, an internal solid-state transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.
BATTERY - BATTERY BACKUP
The ELR Edge Lit Exit Sign series is designed with a 4.8V maintenance-free NiCad battery. The battery is protected by a low voltage cut-off circuit.
OPERATIONAL TEMPERATURE
| Temperature Ratings | |
| Standard Option | 32°F to 122°F |
SELF-TESTING OPTION
This unit continuously self checks for proper operation. The multi-color LED indicator light will indicate the status after testing and adjust when corrected. The unit will self test in emergency mode for up to the full 90 minute duration to ensure proper operation during an actual power failure.
ELECTRICAL COMPONENTS
Dual voltage input 120/277 VAC operation. LED display indicates AC/ON. An external push button test switch allows maintenance personnel to quickly determine the operational status of the unit. Unit offers brown out, overload and short circuit protection.
INSTALLATION
The ELR Edge Lit Exit Sign series is suitable for ceiling recessed mounting and compatible with drywall or drop ceiling mount installations. Includes field installable directional arrow indicators. All hardware is included.
